Description
Electronics
- Motor

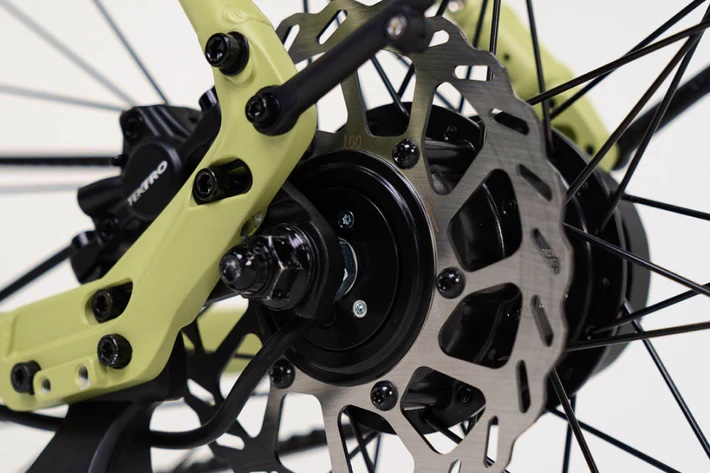

Mivice M080 350W Rear Hub Motor
- Sensor
Mivice S200 Torque Sensor
- Display

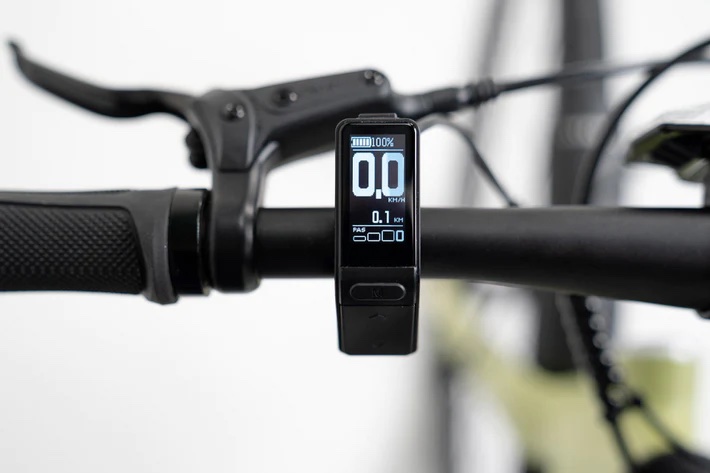

Minimalist OLED Display
- Battery

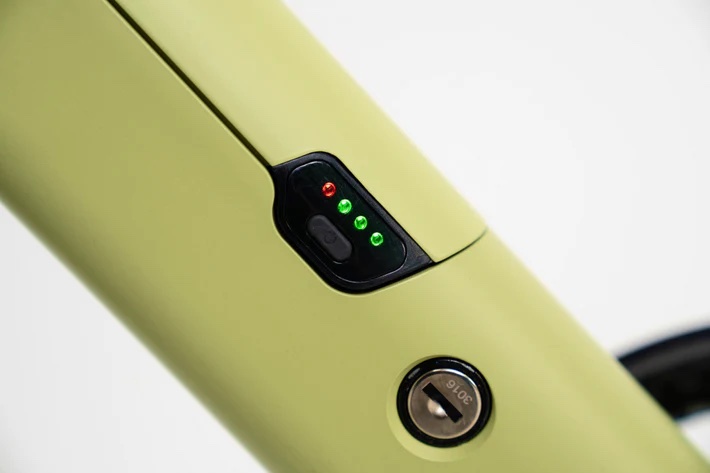

36V, 10Ah Lithium-ion Battery with LG Cells
- Controller
Mivice C201 Controller
Performance
- Top Speed*
20 mph
*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.
- Range
Up to 53 miles*
*Actual performance will vary depending on temperature, road conditions, rider’s weight, etc.
- Climbing Ability*
Up to 15°
*The actual performance would depend on the rider’s physical strength.
Component
- Frame
6061 Aluminium Frame
- Front Fork
6061 Aluminium Front Fork
- Drivetrain
Single-speed Drivetrain
Gates CDN Carbon Belt
- Crankset
Gates CDX Crankset
- Tires
CST Puncture-proof 700C-size Tires
- Bottom Bracket
Fully-concealed Bottom Bracket
- Wheels
700C Aluminium Rims
- Brake
TEKTRO Hydraulic Disc Brakes
- Colors
Avocado Green (Matt) / Midnight Black (Matt) / Sky Blue (Matt) / Pebble Grey (Matt)
- Weight*
Net weight: 37 lbs
Full weight: 41 lbs
*All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.
Geometry
|
SIZE (mm) |
SYMBOL |
M |
L |
XL |
|
Top tube |
A |
605 |
615 |
630 |
|
Seat tube |
B |
500 |
540 |
580 |
|
Head tube |
C |
140 |
140 |
140 |
|
Head tube angle |
D |
71.5 |
71.5 |
71.5 |
|
Seat tube angle |
E |
73.5 |
73.5 |
73.5 |
|
Chainstay |
F |
457 |
457 |
457 |
|
Wheelbase |
G |
1105.3 |
1115.7 |
1130.7 |
|
Standover |
H |
805 |
823 |
841 |
